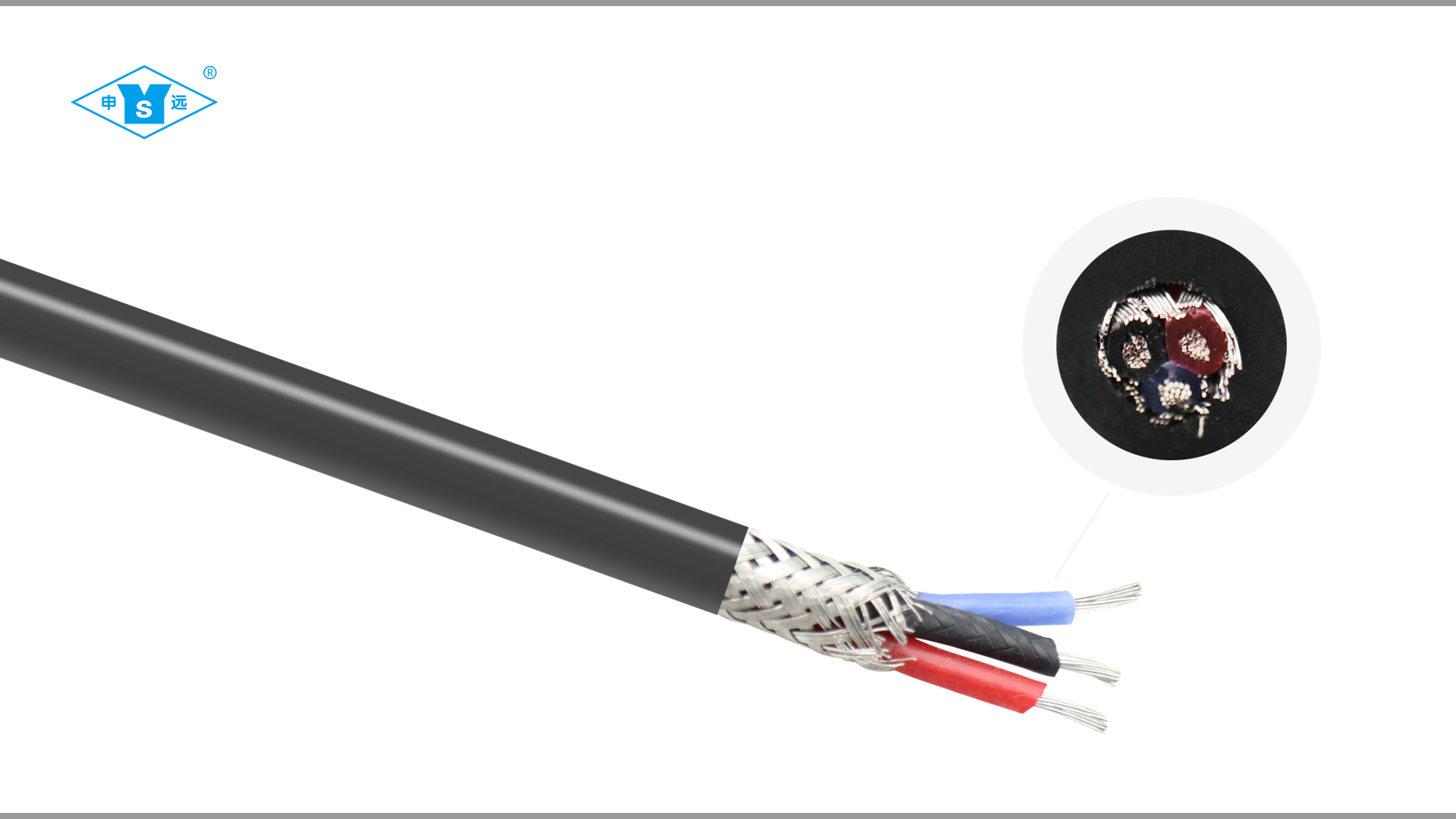

產品型號
YGZPF-M
產品特性
額定電壓：300/500V
工作溫度：-60～+200℃
導 體：絞合鍍錫銅線
絕 緣：FEP 鐵氟龍
護 套：硅橡膠
顏 色：紅/黃/蘭/白/黑/黃綠/棕/綠等
特點/用途
在長期潮濕環境中使用，電性能及防水、防霉性能優越。彎曲性能優良，最小彎曲半徑為電纜外徑16倍，可移動使用。 使用于交流額定電壓450/750V及以下各種移動式電機、鋼鐵、航空、電廠、石化等高溫環境中使用。
交貨要求
交貨要求： 按雙方合同協議商定，允許不小于10米的短段交貨。其數量應不超過交貨總長度的10%。
技術參數
| 截面積 | 導體結構 | 絕緣 | 護套 | 20℃時導體電阻不大于（Ω/KM） | |||
| mm2 | 厚度 | 外徑 | 厚度 | 外徑 | |||
| 1*0.4 | 48/0.10 | 0.5 | 1.8 | 0.8 | 4 | 53.1 | |
| 1*0.75 | 19/0.23 | 0.6 | 2.35 | 0.65 | 4.1 | 24.6 | |
| 1*1.5 | 19/0.32 | 0.6 | 2.8 | 1.2 | 5.8 | 12.7 | |
| 3*0.08 | 7/0.12 | 0.2 | 0.76 | 0.7 | 3.4 | 245 | |
| 4*0.08 | 7/0.12 | 0.2 | 0.76 | 0.8 | 4 | 245 | |
| 5*0.08 | 7/0.12 | 0.2 | 0.76 | 0.8 | 4.2 | 245 | |
| 6*0.08 | 7/0.12 | 0.2 | 0.76 | 1.1 | 5.2 | 245 | |
| 2*0.12 | 7/0.15 | 0.25 | 0.95 | 0.7 | 3.9 | 163 | |
| 3*0.12 | 7/0.15 | 0.25 | 0.95 | 0.7 | 4 | 163 | |
| 4*0.15 | 7/0.15 | 0.25 | 0.95 | 1 | 4.8 | 163 | |
| 5*0.12 | 7/0.15 | 0.25 | 0.95 | 0.9 | 4.9 | 163 | |
| 6*0.12 | 7/0.15 | 0.25 | 0.95 | 1 | 5.4 | 163 | |
| 7*0.12 | 7/0.15 | 0.25 | 0.95 | 1 | 5.5 | 163 | |
| 2*0.2 | 7/0.20 | 0.25 | 1.1 | 0.8 | 4.3 | 90.4 | |
| 3*0.2 | 7/0.20 | 0.25 | 1.1 | 0.8 | 4.5 | 90.4 | |
| 4*0.2 | 7/0.20 | 0.25 | 1.1 | 1 | 5.2 | 90.4 | |
| 4*24# | 7/0.20 | 0.33 | 1.26 | 1.2 | 6 | 90.4 | |
| 5*0.2 | 7/0.20 | 0.25 | 1.1 | 1 | 5.5 | 90.4 | |
| 6*0.2 | 7/0.20 | 0.25 | 1.1 | 1.2 | 6.2 | 90.4 | |
| 7*0.2 | 7/0.20 | 0.25 | 1.1 | 1.2 | 6.2 | 90.4 | |
| 8*0.2 | 7/0.20 | 0.25 | 1.1 | 1.2 | 6.5 | 90.4 | |
| 10*0.2 | 7/0.20 | 0.25 | 1.1 | 1.4 | 7.6 | 90.4 | |
| 16*0.2 | 7/0.20 | 0.25 | 1.1 | 1.5 | 8.6 | 90.4 | |
| 19*0.2 | 7/0.20 | 0.25 | 1.1 | 1.5 | 9 | 90.4 | |
| 2*0.35 | 19/0.16 | 0.25 | 1.3 | 1 | 5 | 53.1 | |
| 3*0.35 | 19/0.16 | 0.25 | 1.3 | 1 | 5.4 | 53.1 | |
| 4*0.35 | 19/0.16 | 0.25 | 1.3 | 1.2 | 6.2 | 53.1 | |
| 5*0.35 | 19/0.16 | 0.25 | 1.3 | 1.2 | 6.5 | 53.1 | |
| 6*0.35 | 19/0.16 | 0.25 | 1.3 | 1.2 | 7 | 53.1 | |
| 7*0.35 | 19/0.16 | 0.25 | 1.3 | 1.2 | 7 | 53.1 | |
| 8*0.35 | 19/0.16 | 0.25 | 1.3 | 1.4 | 7.8 | 53.1 | |
| 2*0.5 | 19/0.18 | 0.25 | 1.4 | 1 | 5.2 | 40.1 | |
| 3*0.5 | 19/0.18 | 0.25 | 1.4 | 1 | 5.5 | 40.1 | |
| 4*0.5 | 19/0.18 | 0.25 | 1.4 | 1.1 | 6.1 | 40.1 | |
| 5*0.5 | 19/0.18 | 0.25 | 1.4 | 1.2 | 6.8 | 40.1 | |
| 6*0.5 | 19/0.18 | 0.25 | 1.4 | 1.3 | 7.2 | 40.1 | |
| 7*0.5 | 19/0.18 | 0.25 | 1.4 | 1.3 | 7.4 | 40.1 | |
| 2*0.75 | 19/0.23 | 0.25 | 1.7 | 1.2 | 6.3 | 24.6 | |
| 3*0.75 | 19/0.23 | 0.25 | 1.7 | 1.4 | 7 | 24.6 | |
| 4*0.75 | 19/0.23 | 0.25 | 1.7 | 1.6 | 8 | 24.6 | |
| 5*0.75 | 19/0.23 | 0.25 | 1.7 | 1.5 | 8.2 | 24.6 | |
| 6*0.75 | 19/0.23 | 0.25 | 1.7 | 1.5 | 8.6 | 24.6 | |
| 7*0.75 | 19/0.23 | 0.25 | 1.7 | 1.6 | 8.8 | 24.6 | |
| 2*1 | 19/0.26 | 0.25 | 1.8 | 1.2 | 6.6 | 20.4 | |
| 3*1 | 19/0.26 | 0.25 | 1.8 | 1.4 | 7.3 | 20.4 | |
| 4*1 | 19/0.26 | 0.25 | 1.8 | 1.4 | 7.8 | 20.4 | |
| 7*1 | 19/0.26 | 0.25 | 1.8 | 1.6 | 8.6 | 20.4 | |
| 2*1.5 | 19/0.32 | 0.3 | 2.25 | 1.3 | 7.7 | 12.7 | |
| 3*1.5 | 19/0.32 | 0.3 | 2.25 | 1.4 | 8.2 | 12.7 | |
| 4*1.5 | 19/0.32 | 0.3 | 2.25 | 1.4 | 8.5 | 12.7 | |
| 7*1.5 | 19/0.32 | 0.3 | 2.25 | 1.6 | 10.5 | 12.7 | |
| 2*2.5 | 19/0.41 | 0.4 | 2.8 | 1.5 | 9.2 | 7.43 | |
| 3*2.5 | 19/0.41 | 0.4 | 2.8 | 1.5 | 9.6 | 7.43 | |
| 4*2.5 | 19/0.41 | 0.4 | 2.8 | 1.6 | 10.6 | 7.43 | |
| 7*2.5 | 19/0.41 | 0.4 | 2.8 | 1.8 | 12.6 | 7.43 | |
YGZPF-M產品技術參數-2
| 截面積 | 導體結構 | 絕緣 | 護套 | |||
| mm2 | 外徑 | 外徑 | 厚度 | 外徑 | ||
| 2*0.2+2*0.4 | 19/0.12 | 37/0.12 | 1.1 | 1.35 | 1 | 5.4 |
| 3*0.2+2*0.4 | 26/0.10 | 52/0.10 | 1.1 | 1.35 | 0.8 | 5.4 |
| 3*2*0.2 | 7/0.20 | 7/0.20 | 1.1 | 1.1 | 1 | 6.5 |
| 3*0.35+5*0.12+0.12 | 19/0.16 | 7/0.15 | 1.3 | 0.95 | 1.1 | 6.6 |
| 3*0.35+9*0.12+0.12 | 19/0.16 | 7/0.15 | 1.3 | 0.95 | 1.1 | 7.3 |
| 3*0.35+5*0.12+2*0.2+0.12 | 19/0.16 | 7/0.20/7/0.15 | 1.3 | 1.10/0.95 | 1.4 | 7.8 |
| 9*0.35+7*0.20 | 19/0.16 | 7/0.20 | 1.3 | 0.6 | 1.5 | 9.5 |
