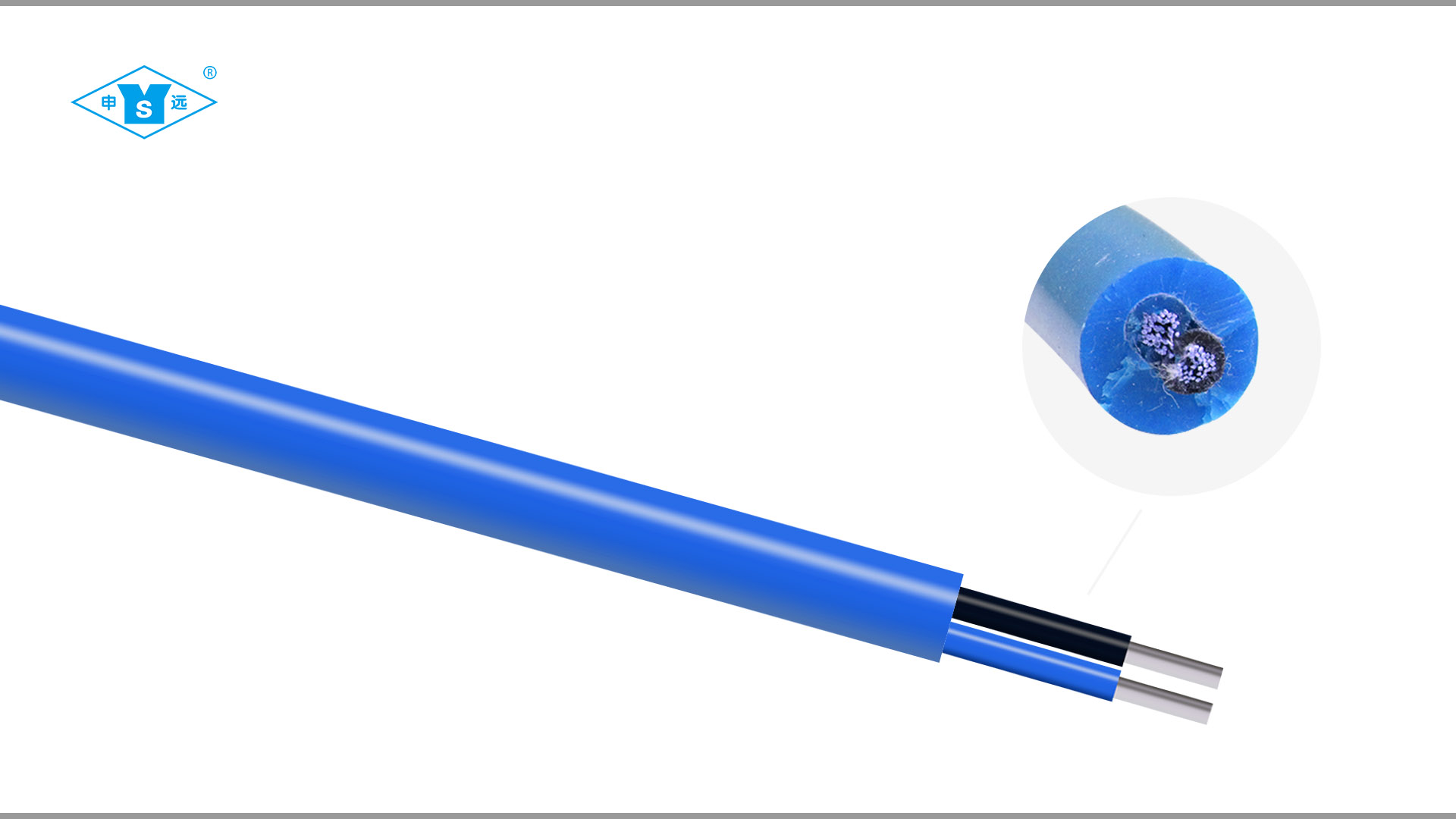

產品型號
YGZF-M
產品特性
額定電壓：300/500V
工作溫度：-60～+200℃
導 體：裸銅導體或絞合鍍錫銅線
絕 緣：鐵氟龍
護 套：硅橡膠
顏 色：紅/黃/蘭/白/黑/黃綠/棕/綠等
特點/用途
特點/用途： 在長期潮濕環境中使用，電性能及防水、防霉性能優越。彎曲性能優良，最小彎曲半徑為電纜外徑16倍，可移動使用。 使用于交流額定電壓450/750V及以下各種移動式電機、鋼鐵、航空、電廠、石化等高溫環境中使用。
交貨要求
交貨要求： 按雙方合同協議商定，允許不小于10米的短段交貨。其數量應不超過交貨總長度的10%。
技術參數
| 截面積 | 導體結構 | 絕緣 | 護套 | 20℃時導體電阻不大于（Ω/KM） | ||
| mm2 | 厚度 | 外徑 | 厚度 | 外徑 | ||
| 2*0.08 | 7/0.12 | 0.2 | 0.78 | 0.8 | 2.4 | 245 |
| 3*0.08 | 7/0.12 | 0.2 | 0.78 | 1 | 3.8 | 245 |
| 4*0.08 | 7/0.12 | 0.2 | 0.78 | 1 | 4 | 245 |
| 5*0.08 | 7/0.12 | 0.2 | 0.78 | 1.2 | 4.5 | 245 |
| 6*0.08 | 7/0.12 | 0.2 | 0.78 | 1.4 | 5.2 | 245 |
| 7*0.08 | 7/0.12 | 0.2 | 0.78 | 1.4 | 5.2 | 245 |
| 2*0.12 | 7/0.15 | 0.25 | 0.95 | 0.9 | 3.8 | 163 |
| 3*0.12 | 7/0.15 | 0.25 | 0.95 | 1 | 4.1 | 163 |
| 4*0.12 | 7/0.15 | 0.25 | 0.95 | 1 | 4.3 | 163 |
| 5*0.12 | 7/0.15 | 0.25 | 0.95 | 1.2 | 5 | 163 |
| 6*0.12 | 7/0.15 | 0.25 | 0.95 | 1.2 | 5.2 | 163 |
| 7*0.12 | 7/0.15 | 0.25 | 0.95 | 1.2 | 5.2 | 163 |
| 8*0.2 | 7/0.15 | 0.25 | 0.95 | 1.2 | 5.6 | 163 |
| 10*0.12 | 7/0.15 | 0.25 | 0.95 | 1.3 | 6.4 | 163 |
| 12*0.12 | 7/0.15 | 0.25 | 0.95 | 1.3 | 6.8 | 163 |
| 19*0.12 | 7/0.15 | 0.25 | 0.95 | 1.3 | 7.4 | 163 |
| 2*0.2 | 7/.20 | 0.25 | 1.1 | 1.2 | 4.6 | 90.4 |
| 3*0.2 | 19/0.12 | 0.25 | 1.1 | 1.3 | 5 | 90.4 |
| 3*0.2 | 7/0.20 | 0.25 | 1.1 | 1.5 | 5.5 | 90.4 |
| 4*0.2 | 7/0.20 | 0.25 | 1.1 | 1.2 | 5 | 90.4 |
| 5*0.2 | 7/0.20 | 0.25 | 1.1 | 1.2 | 5.4 | 90.4 |
| 5*0.2 | 19/0.12 | 0.25 | 1.1 | 1.5 | 6 | 90.4 |
| 6*0.2 | 7/0.20 | 0.25 | 1.1 | 1.2 | 5.8 | 90.4 |
| 7*0.2 | 7/0.20 | 0.25 | 1.1 | 1.2 | 5.8 | 90.4 |
| 8*0.2 | 7/0.20 | 0.25 | 1.1 | 1.2 | 6 | 90.4 |
| 10*0.2 | 7/0.20 | 0.25 | 1.1 | 1.2 | 6.8 | 90.4 |
| 12*0.2 | 7/0.20 | 0.25 | 1.1 | 1.4 | 7.5 | 90.4 |
| 19*0.2 | 7/0.20 | 0.25 | 1.1 | 1.4 | 8.2 | 90.4 |
| 2*0.35 | 19/0.16 | 0.25 | 1.3 | 0.8 | 4.2 | 53.1 |
| 3*0.35 | 19/0.16 | 0.25 | 1.3 | 1.1 | 5 | 53.1 |
| 4*0.35 | 19/0.16 | 0.25 | 1.3 | 1.2 | 5.5 | 53.1 |
| 5*0.35 | 19/0.16 | 0.25 | 1.3 | 1.3 | 6.2 | 53.1 |
| 6*0.35 | 19/0.16 | 0.25 | 1.3 | 1.4 | 6.8 | 53.1 |
| 7*0.35 | 19/0.16 | 0.25 | 1.3 | 1.4 | 6.8 | 53.1 |
| 8*0.35 | 19/0.16 | 0.25 | 1.3 | 1.4 | 7 | 53.1 |
| 9*0.35 | 19/0.16 | 0.25 | 1.3 | 1.5 | 7.8 | 53.1 |
| 10*0.35 | 19/0.16 | 0.25 | 1.3 | 1.5 | 8.2 | 53.1 |
| 12*0.35 | 19/0.16 | 0.25 | 1.3 | 1.5 | 8.4 | 53.1 |
| 14*0.35 | 19/0.16 | 0.25 | 1.3 | 1.5 | 8.8 | 53.1 |
| 19*0.35 | 19/0.16 | 0.25 | 1.3 | 1.5 | 9.5 | 53.1 |
| 2*0.5 | 19/0.18 | 0.25 | 1.4 | 1.2 | 5.2 | 40.1 |
| 3*0.5 | 19/0.18 | 0.25 | 1.4 | 1.2 | 5.5 | 40.1 |
| 4*0.5 | 19/0.18 | 0.25 | 1.4 | 1.4 | 6.2 | 40.1 |
| 5*0.5 | 19/0.18 | 0.25 | 1.4 | 1.4 | 6.6 | 40.1 |
| 6*0.5 | 19/0.18 | 0.25 | 1.4 | 1.4 | 7 | 40.1 |
| 7*0.5 | 19/0.18 | 0.25 | 1.4 | 1.4 | 7 | 40.1 |
| 8*0.5 | 19/0.18 | 0.25 | 1.4 | 1.4 | 7.4 | 40.1 |
| 9*0.5 | 19/0.18 | 0.25 | 1.4 | 1.4 | 8 | 40.1 |
| 10*0.5 | 19/0.18 | 0.25 | 1.4 | 1.5 | 8.6 | 40.1 |
| 12*0.5 | 19/0.18 | 0.25 | 1.4 | 1.5 | 8.8 | 40.1 |
| 14*0.5 | 19/0.18 | 0.25 | 1.4 | 1.5 | 9.2 | 40.1 |
