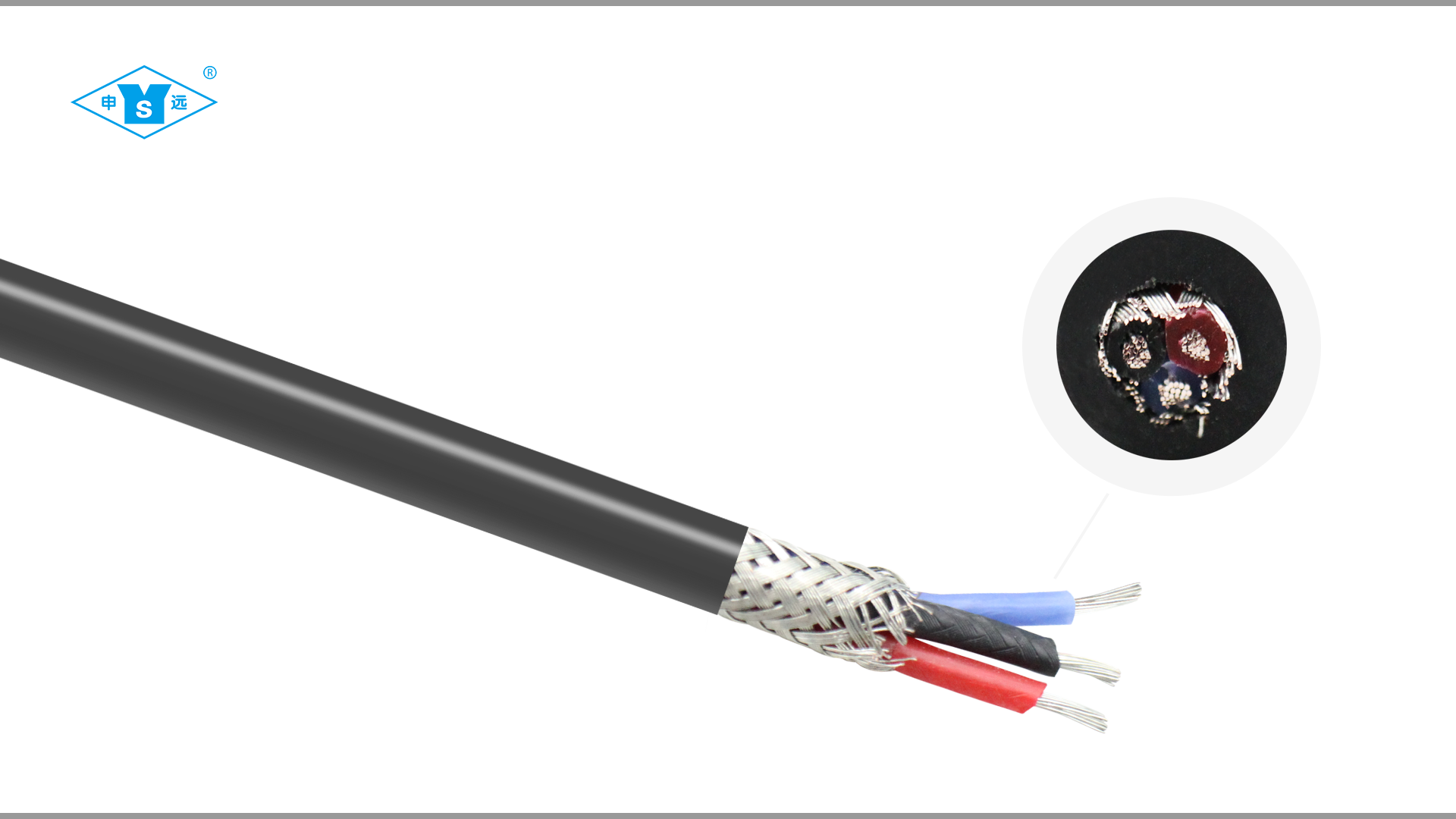

產品型號
YGZP-M
產品特性
額定電壓：300/500V
工作溫度：-60～+200℃

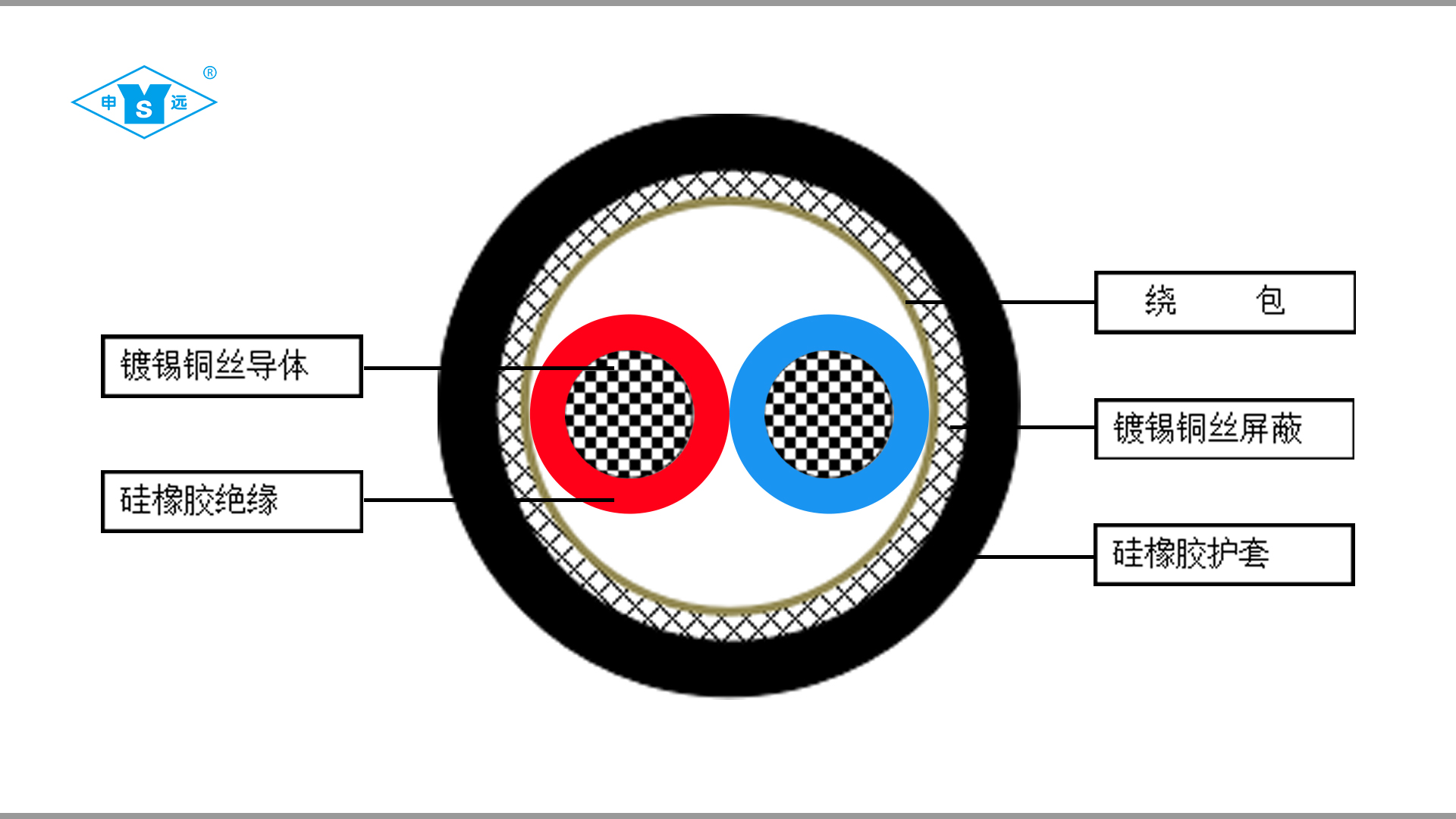

導體：絞合鍍錫銅線
絕 緣：硅橡膠
護套：硅橡膠
顏 色：紅/黃/蘭/白/黑/黃綠/棕/綠等
特點/用途
特點/用途： 可在長期潮濕環境中使用，電性能及防水、防霉性能優越。彎曲性能優良，最小彎曲半徑為電纜外徑16倍，可移動使用。使用于交流額定電壓300/500V及以下各種移動式電機、鋼鐵、航空、電廠、石化等高溫環境中使用。
交貨要求
交貨要求： 按雙方合同協議商定，允許不小于10米的短段交貨。其數量應不超過交貨總長度的10%。
技術參數
| 截面積 | 導體結構 | 絕緣 | 護套 | 20℃時導體電阻不大于（Ω/KM） | ||
| mm2 | 厚度 | 外徑 | 厚度 | 外徑 | ||
| 1*0.4 | 48/0.10 | 0.6 | 2 | 0.8 | 3.9 | 54.8 |
| 1*0.5 | 62/0.10 | 0.55 | 2 | 0.9 | 4.2 | 40.1 |
| 2*0.5 | 28/0.15 | 0.55 | 2 | 1.1 | 6.7 | 40.1 |
| 3*0.5 | 28/0.15 | 0.55 | 2 | 1.2 | 7.2 | 40.1 |
| 4*0.5 | 28/0.15 | 0.55 | 2 | 1.2 | 7.7 | 40.1 |
| 5*0.5 | 28/0.15 | 0.55 | 2 | 1.3 | 8.6 | 40.1 |
| 6*0.5 | 28/0.15 | 0.55 | 2 | 1.4 | 9.4 | 40.1 |
| 7*0.5 | 28/0.15 | 0.55 | 2 | 1.4 | 9.4 | 40.1 |
| 8*0.5 | 28/0.15 | 0.55 | 2 | 1.5 | 10.2 | 40.1 |
| 10*0.5 | 28/0.15 | 0.55 | 2 | 1.5 | 10.5 | 40.1 |
| 12*0.5 | 28/0.15 | 0.55 | 2 | 1.6 | 12 | 40.1 |
| 19*0.5 | 28/0.15 | 0.55 | 2 | 1.6 | 13.8 | 40.1 |
| 2*0.75 | 42/0.15 | 0.6 | 2.4 | 1.2 | 7.8 | 26.7 |
| 3*0.75 | 42/0.15 | 0.6 | 2.4 | 1.2 | 8.1 | 26.7 |
| 4*0.75 | 42/0.15 | 0.6 | 2.4 | 1.4 | 9.2 | 26.7 |
| 5*0.75 | 42/0.15 | 0.6 | 2.4 | 1.5 | 10 | 26.7 |
| 6*0.75 | 42/0.15 | 0.6 | 2.4 | 1.5 | 10.8 | 26.7 |
| 7*0.75 | 42/0.15 | 0.6 | 2.4 | 1.5 | 10.8 | 26.7 |
| 8*0.75 | 42/0.15 | 0.6 | 2.4 | 1.5 | 11.5 | 26.7 |
| 10*0.75 | 42/0.15 | 0.6 | 2.4 | 1.6 | 13 | 26.7 |
| 12*0.75 | 42/0.15 | 0.6 | 2.4 | 1.6 | 13.8 | 26.7 |
| 19*0.75 | 42/0.15 | 0.6 | 2.4 | 1.8 | 16.2 | 26.7 |
| 2*1 | 32/0.20 | 0.6 | 2.6 | 1.4 | 8.6 | 20 |
| 3*1 | 32/0.20 | 0.6 | 2.6 | 1.4 | 8.8 | 20 |
| 4*1 | 32/0.20 | 0.6 | 2.6 | 1.5 | 9.4 | 20 |
| 5*1 | 32/0.20 | 0.6 | 2.6 | 1.5 | 10.4 | 20 |
| 6*1 | 32/0.20 | 0.6 | 2.6 | 1.6 | 11.5 | 20 |
| 7*1 | 32/0.20 | 0.6 | 2.6 | 1.6 | 11.5 | 20 |
| 8*1 | 32/0.20 | 0.6 | 2.6 | 1.6 | 12.4 | 20 |
| 10*1 | 32/0.20 | 0.6 | 2.6 | 1.8 | 13.8 | 20 |
| 12*1 | 32/0.20 | 0.6 | 2.6 | 1.8 | 10.5 | 20 |
| 16*1 | 32/0.20 | 0.6 | 2.6 | 1.8 | 16 | 20 |
| 19*1 | 32/0.20 | 0.6 | 2.6 | 1.8 | 17.2 | 20 |
| 2*1.5 | 48/0.20 | 0.6 | 2.8 | 1.5 | 9.2 | 13.7 |
| 3*1.5 | 48/0.20 | 0.6 | 2.8 | 1.5 | 9.5 | 13.7 |
| 4*1.5 | 48/0.20 | 0.6 | 2.8 | 1.5 | 10.2 | 13.7 |
| 5*1.5 | 48/0.20 | 0.6 | 2.8 | 1.6 | 11.4 | 13.7 |
| 6*1.5 | 48/0.20 | 0.6 | 2.8 | 1.6 | 12.2 | 13.7 |
| 7*1.5 | 48/0.20 | 0.6 | 2.8 | 1.6 | 12.2 | 13.7 |
| 8*1.5 | 48/0.20 | 0.6 | 2.8 | 1.6 | 13 | 13.7 |
| 10*1.5 | 48/0.20 | 0.6 | 2.8 | 1.8 | 15 | 13.7 |
| 2*2.5 | 49/0.25 | 0.7 | 3.5 | 1.6 | 10.8 | 8.21 |
| 3*2.5 | 49/0.25 | 0.7 | 3.5 | 1.6 | 11.2 | 8.21 |
| 4*2.5 | 49/0.25 | 0.7 | 3.5 | 1.8 | 12.6 | 8.21 |
| 5*2.5 | 49/0.25 | 0.7 | 3.5 | 1.8 | 13.6 | 8.21 |
| 6*2.5 | 49/0.25 | 0.7 | 3.5 | 1.8 | 14.6 | 8.21 |
| 7*2.5 | 49/0.25 | 0.7 | 3.5 | 1.8 | 14.6 | 8.21 |
| 2*4 | 56/0.30 | 0.7 | 4.1 | 1.6 | 12 | 5.09 |
| 3*4 | 56/0.30 | 0.7 | 4.1 | 1.7 | 12.8 | 5.09 |
| 4*4 | 56/0.30 | 0.7 | 4.1 | 1.8 | 14 | 5.09 |
| 2*6 | 84/0.30 | 0.7 | 4.9 | 1.6 | 13.8 | 3.39 |
| 3*6 | 84/0.30 | 0.7 | 4.9 | 1.8 | 14.8 | 3.39 |
| 4*6 | 84/0.30 | 0.7 | 4.9 | 1.8 | 16 | 3.39 |
