產品型號
YGZ-M
產品特性
額定電壓：300/500V
工作溫度：-60～+200℃

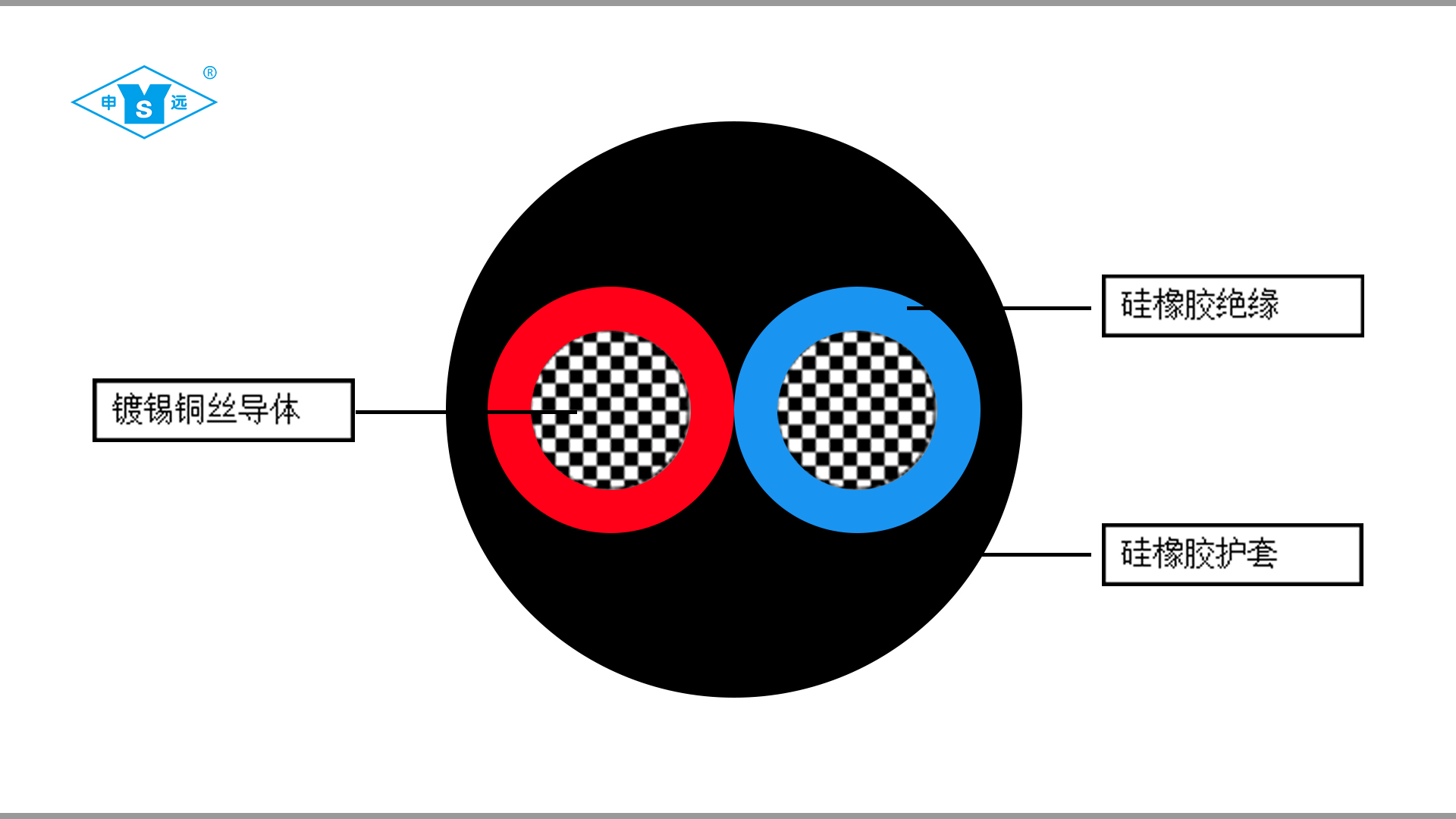

導體：絞合鍍錫銅線
絕 緣：硅橡膠
護 套：硅橡膠
顏 色：紅/黃/蘭/白/黑/黃綠/棕/綠等
特點/用途
特點/用途： 可在長期潮濕環境中使用，電性能及防水、防霉性能優越。彎曲性能優良，最小彎曲半徑為電纜外徑16倍，可移動使用。使用于交流額定電壓300/500V及以下各種移動式電機、鋼鐵、航空、電廠、石化等高溫環境中使用。
交貨要求
交貨要求： 按雙方合同協議商定，允許不小于10米的短段交貨。其數量應不超過交貨總長度的10%。
技術參數
| 截面積 | 導體結構 | 絕緣 | 護套 | 20℃時導體電阻不大于（Ω/KM） | ||
| mm2 | 厚度 | 外徑 | 厚度 | 外徑 | ||
| 2*0.2 | 7/0.20 | 0.4 | 1.4 | 0.9 | 4.6 | 94 |
| 3*0.2 | 7/0.20 | 0.4 | 1.4 | 0.9 | 4.8 | 94 |
| 4*0.2 | 7/0.20 | 0.4 | 1.4 | 0.9 | 5.2 | 94 |
| 5*0.2 | 7/0.20 | 0.4 | 1.4 | 1 | 5.8 | 94 |
| 2*0.3 | 16/0.15 | 0.4 | 1.5 | 0.9 | 4.8 | 71.2 |
| 3*0.3 | 16/0.15 | 0.4 | 1.5 | 0.9 | 5 | 71.2 |
| 4*0.3 | 16/0.15 | 0.4 | 1.5 | 1 | 5.6 | 71.2 |
| 5*0.3 | 16/0.15 | 0.4 | 1.5 | 1.2 | 6.4 | 71.2 |
| 2*0.5 | 28/0.15 | 0.5 | 2 | 1 | 6 | 40.1 |
| 3*0.5 | 28/0.15 | 0.5 | 2 | 1.2 | 6.8 | 40.1 |
| 4*0.5 | 28/0.15 | 0.5 | 2 | 1.2 | 7.2 | 40.1 |
| 5*0.5 | 28/0.15 | 0.5 | 2 | 1.2 | 7.8 | 40.1 |
| 6*0.5 | 28/0.15 | 0.5 | 2 | 1.3 | 8.6 | 40.1 |
| 7*0.5 | 28/0.15 | 0.5 | 2 | 1.3 | 8.6 | 40.1 |
| 2*0.75 | 24/0.20 | 0.6 | 2.4 | 1.2 | 7.2 | 26.7 |
| 3*0.75 | 24/0.20 | 0.6 | 2.4 | 1.2 | 7.6 | 26.7 |
| 4*0.75 | 24/0.20 | 0.6 | 2.4 | 1.3 | 8.5 | 26.7 |
| 5*0.75 | 24/0.20 | 0.6 | 2.4 | 1.5 | 9.5 | 26.7 |
| 6*0.75 | 24/0.20 | 0.6 | 2.4 | 1.6 | 10.4 | 26.7 |
| 7*0.75 | 24/0.20 | 0.6 | 2.4 | 1.6 | 10.4 | 26.7 |
| 10*0.75 | 24/0.20 | 0.6 | 2.4 | 1.7 | 12.6 | 26.7 |
| 12*0.75 | 24/0.20 | 0.6 | 2.4 | 1.8 | 13.6 | 26.7 |
| 14*0.75 | 24/0.20 | 0.6 | 2.4 | 1.8 | 14.2 | 26.7 |
| 19*0.75 | 24/0.20 | 0.6 | 2.4 | 1.8 | 15.6 | 26.7 |
| 2*1 | 32/0.20 | 0.6 | 2.6 | 1.2 | 7.6 | 20 |
| 3*1 | 32/0.20 | 0.6 | 2.6 | 1.2 | 7.8 | 20 |
| 4*1 | 32/0.20 | 0.6 | 2.6 | 1.3 | 8.8 | 20 |
| 5*1 | 32/0.20 | 0.6 | 2.6 | 1.5 | 10 | 20 |
| 6*1 | 32/0.20 | 0.6 | 2.6 | 1.6 | 11 | 20 |
| 7*1 | 32/0.20 | 0.6 | 2.6 | 1.8 | 11.6 | 20 |
| 10*1 | 32/0.20 | 0.6 | 2.6 | 1.8 | 13.4 | 20 |
| 12*1 | 32/0.20 | 0.6 | 2.6 | 1.8 | 14.5 | 20 |
| 14*1 | 32/0.20 | 0.6 | 2.6 | 1.8 | 15.2 | 20 |
| 19*1 | 32/0.20 | 0.6 | 2.6 | 1.8 | 16.6 | 20 |
| 2*1.5 | 48/0.20 | 0.6 | 2.8 | 1.3 | 8.5 | 13.7 |
| 3*1.5 | 48/0.20 | 0.6 | 2.8 | 1.3 | 8.5 | 13.7 |
| 4*1.5 | 48/0.20 | 0.6 | 2.8 | 1.4 | 9.5 | 13.7 |
| 5*1.5 | 48/0.20 | 0.6 | 2.8 | 1.5 | 10.6 | 13.7 |
| 6*1.5 | 48/0.20 | 0.6 | 2.8 | 1.8 | 12 | 13.7 |
| 7*1.5 | 48/0.20 | 0.6 | 2.8 | 1.8 | 12 | 13.7 |
| 10*1.5 | 48/0.20 | 0.6 | 2.8 | 1.8 | 14.2 | 13.7 |
| 12*1.5 | 48/0.20 | 0.6 | 2.8 | 1.8 | 15.2 | 13.7 |
| 14*1.5 | 48/0.20 | 0.6 | 2.8 | 1.8 | 16 | 13.7 |
| 19*1.5 | 48/0.20 | 0.6 | 2.8 | 2 | 18 | 13.7 |
| 20*1.5 | 48/0.20 | 0.6 | 2.8 | 2 | 18.5 | 13.7 |
| 24*1.5 | 48/0.20 | 0.6 | 2.8 | 2 | 21.2 | 13.7 |
| 37*1.5 | 48/0.20 | 0.6 | 2.8 | 2.4 | 24.5 | 13.7 |
| 2*2.5 | 49/0.25 | 0.7 | 3.5 | 1.5 | 10 | 8.21 |
| 3*2.5 | 49/0.25 | 0.7 | 3.5 | 1.5 | 10.5 | 8.21 |
| 4*2.5 | 49/0.25 | 0.7 | 3.5 | 1.7 | 12 | 8.21 |
| 5*2.5 | 49/0.25 | 0.7 | 3.5 | 1.8 | 13.2 | 8.21 |
| 6*2.5 | 49/0.25 | 0.7 | 3.5 | 1.8 | 14.2 | 8.21 |
| 7*2.5 | 49/0.25 | 0.7 | 3.5 | 1.8 | 14.2 | 8.21 |
| 10*2.5 | 49/0.25 | 0.7 | 3.5 | 1.8 | 16.8 | 8.21 |
| 12*2.5 | 49/0.25 | 0.7 | 3.5 | 1.8 | 18.2 | 8.21 |
| 14*2.5 | 49/0.25 | 0.7 | 3.5 | 2 | 19.5 | 8.21 |
| 19*2.5 | 49/0.25 | 0.7 | 3.5 | 2.2 | 22 | 8.21 |
| 24*2.5 | 49/0.25 | 0.7 | 3.5 | 2.4 | 26.4 | 8.21 |
| 37*2.5 | 49/0.25 | 0.7 | 3.5 | 2.5 | 29.5 | 8.21 |
