1、額定電壓:300/500V、450/750V
2、工作溫度:-60~+105℃

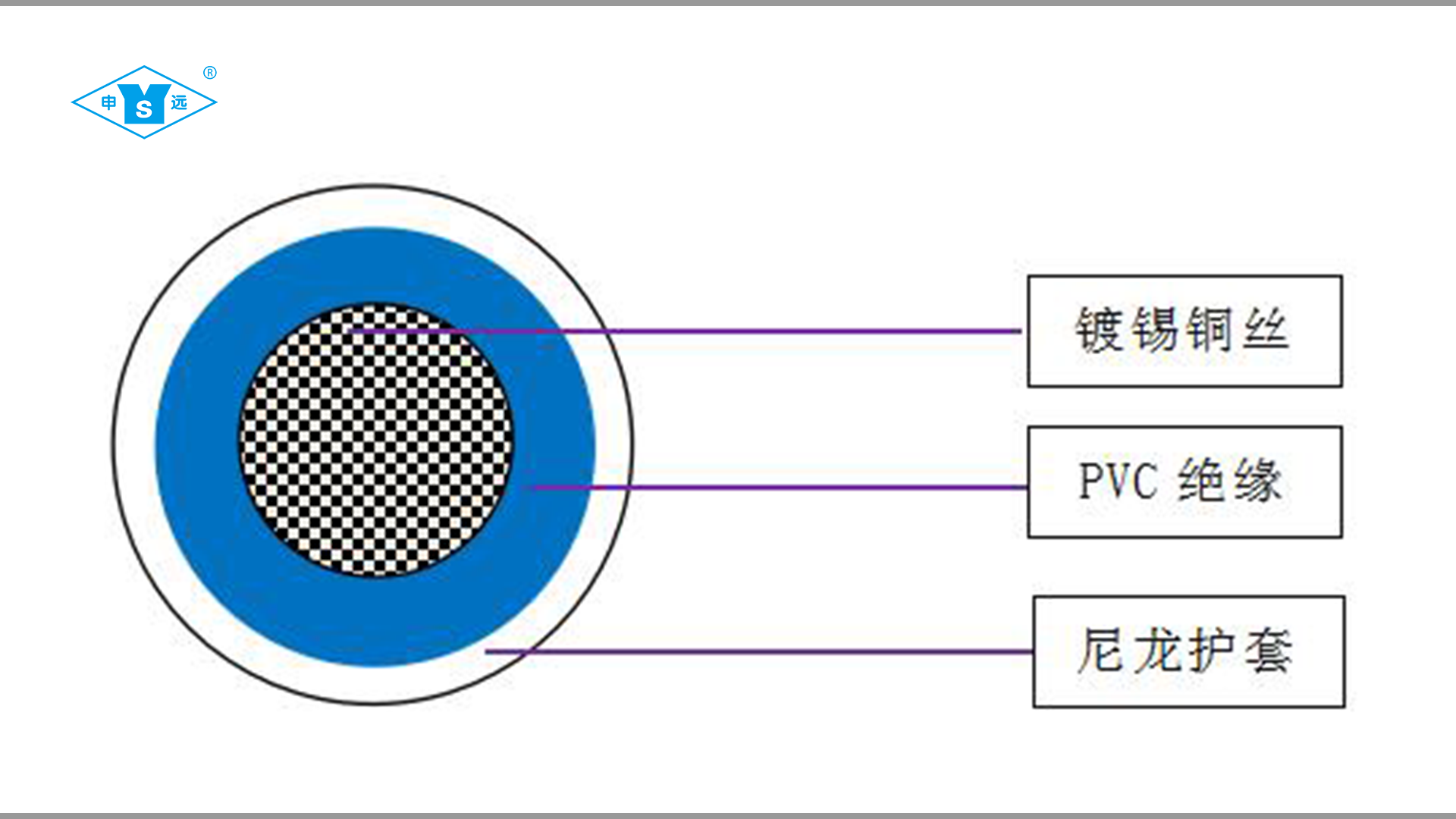

3、導體:絞合鍍錫銅線
4、絕 緣:聚氯乙烯(PVC)
5、護 套:尼龍(NL)
6、顏 色:紅/黃/蘭/白/黑/黃綠/棕等
標稱
截面
mm2
|
導體結構 |
絕緣平
均厚度
mm
|
護套平
均厚度
mm
|
屏蔽銅
線直徑
mm
|
電線平均外徑 mm |
20℃時
導體電阻最大值
Ω /km
|
|
根數/單線直徑 |
非屏蔽型 |
屏蔽型 |
|||||
0.30 |
16/0.15 |
0.35 |
0.12 |
0.10 |
1.7 |
2.2 |
71.2 |
0.35 |
7/0.26 |
0.35 |
0.12 |
0.10 |
1.7 |
2.2 |
50.8 |
19/0.16 |
0.35 |
0.12 |
0.10 |
1.7 |
2.2 |
50.8 |
|
0.5 |
7/0.30 |
0.35 |
0.12 |
0.10 |
1.9 |
2.4 |
40.1 |
19/0.20 |
0.35 |
0.12 |
0.10 |
2.0 |
2.5 |
40.1 |
|
28/0.15 |
0.35 |
0.12 |
0.10 |
2.0 |
2.5 |
40.1 |
|
0.75 |
7/0.37 |
0.35 |
0.12 |
0.10 |
2.1 |
2.6 |
26.7 |
19/0.23 |
0.35 |
0.12 |
0.10 |
2.1 |
2.6 |
26.7 |
|
24/0.20 |
0.35 |
0.12 |
0.10 |
2.1 |
2.6 |
26.7 |
|
42/0.15 |
0.35 |
0.12 |
0.10 |
2.1 |
2.6 |
26.7 |
|
1 |
7/0.43 |
0.35 |
0.14 |
0.10 |
2.0 |
2.3 |
20.0 |
19/0.26 |
0.35 |
0.14 |
0.10 |
2.3 |
2.7 |
20 |
|
32/0.20 |
0.35 |
0.14 |
0.10 |
2.3 |
2.7 |
20 |
|
1.2 |
19/0.28 |
0.4 |
0.14 |
0.10 |
2.5 |
2.9 |
14.6 |
49/0.18 |
0.4 |
0.14 |
0.10 |
2.5 |
3.0 |
14.6 |
|
1.5 |
19/0.32 |
0.4 |
0.14 |
0.10 |
2.7 |
3.2 |
13.7 |
48/0.20 |
0.4 |
0.14 |
0.10 |
2.7 |
3.2 |
13.7 |
|
2 |
19/0.37 |
0.45 |
0.14 |
0.12 |
3.0 |
3.5 |
10.0 |
49/0.23 |
0.45 |
0.14 |
0.12 |
3.0 |
3.5 |
10.0 |
|
37/0.26 |
0.45 |
0.14 |
0.12 |
3.05 |
3.55 |
10.0 |
|
2.5 |
19/0.41 |
0.5 |
0.14 |
0.12 |
3.4 |
3.9 |
8.21 |
37/0.30 |
0.5 |
0.14 |
0.12 |
3.4 |
3.9 |
8.21 |
|
49/0.25 |
0.5 |
0.14 |
0.12 |
3.6 |
4.1 |
8.21 |
|
77/0.20 |
0.5 |
0.14 |
0.12 |
3.6 |
4.1 |
8.21 |
|
3 |
37/0.32 |
0.5 |
0.14 |
0.12 |
3.6 |
4.1 |
6.63 |
3 |
49/0.28 |
0.5 |
0.14 |
0.12 |
3.8 |
4.3 |
6.63 |
4 |
37/0.37 |
0.6 |
0.16 |
0.12 |
3.9 |
4.4 |
5.09 |
4 |
49/0.32 |
0.6 |
0.16 |
0.12 |
4.3 |
4.8 |
5.09 |
4 |
77/0.26 |
0.6 |
0.16 |
0.12 |
4.4 |
4.9 |
5.09 |
4 |
56/0.30 |
0.6 |
0.16 |
0.12 |
4.4 |
4.9 |
5.09 |
5 |
37/0.41 |
0.6 |
0.16 |
0.12 |
4.4 |
4.9 |
4.13 |
5 |
49/0.37 |
0.6 |
0.16 |
0.12 |
4.8 |
5.3 |
4.13 |
6 |
37/0.45 |
0.6 |
0.16 |
0.12 |
4.6 |
5.1 |
3.39 |
6 |
49/0.40 |
0.6 |
0.16 |
0.12 |
5.1 |
5.6 |
3.39 |
6 |
84/0.30 |
0.6 |
0.16 |
0.12 |
5.1 |
5.6 |
3.39 |
8 |
19 × 7/0.28 |
0.7 |
0.20 |
0.12 |
6.0 |
6.5 |
2.3 |
10 |
19 × 7/0.32 |
0.9 |
0.20 |
0.12 |
6.6 |
7.1 |
1.95 |
13 |
19 × 7/0.35 |
0.9 |
0.20 |
0.12 |
7.6 |
8.1 |
1.52 |
16 |
19 × 7/0.39 |
1.0 |
0.20 |
0.15 |
8.3 |
8.9 |
1.24 |
20 |
19 × 7/0.45 |
1.0 |
0.20 |
0.15 |
9.2 |
9.8 |
0.918 |
25 |
19 × 16/0.32 |
1.0 |
0.25 |
0.15 |
9.9 |
10.5 |
0.795 |
