1、額定電壓:300/500V
2、工作溫度:-65~+200℃/250℃

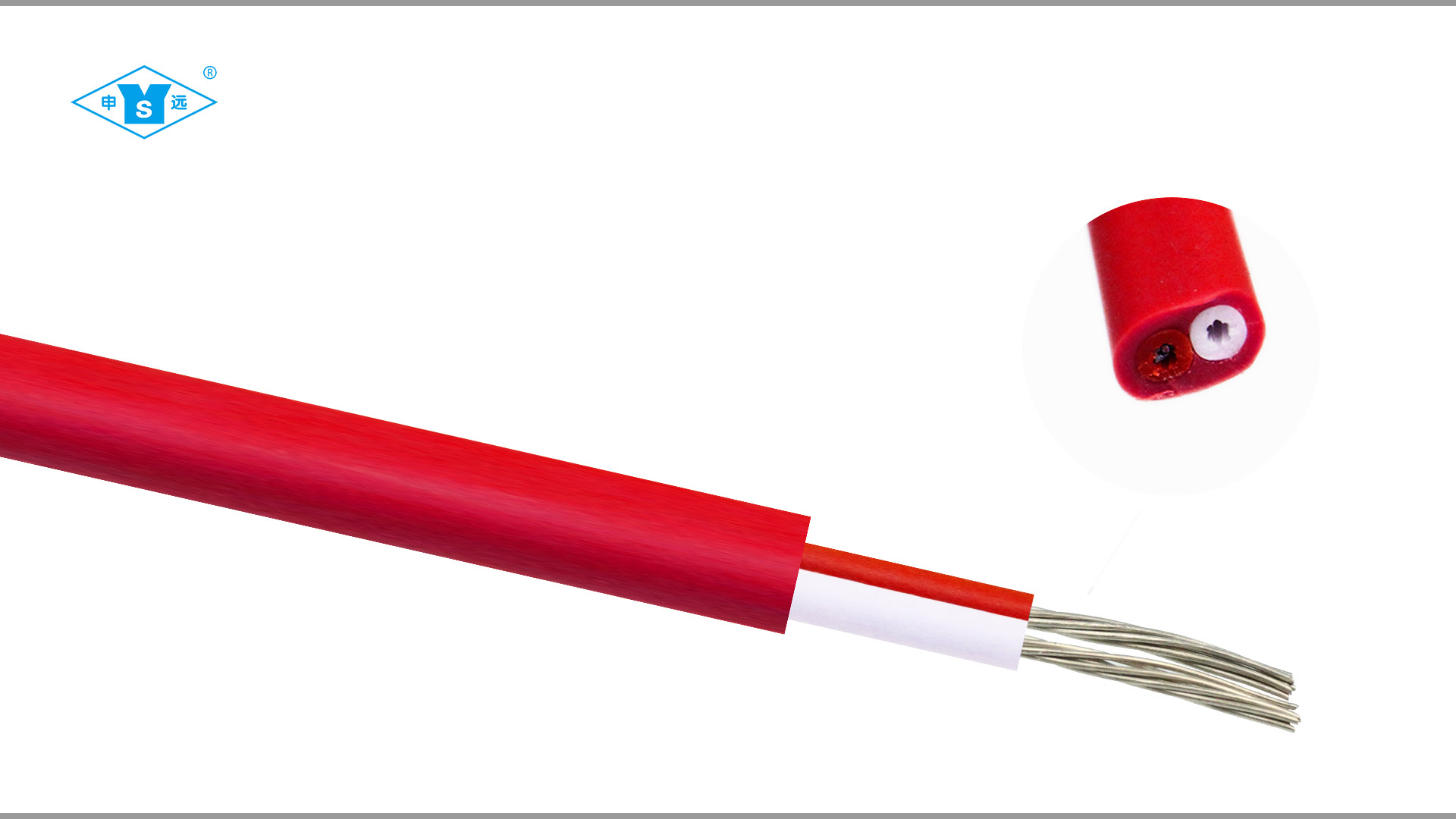

3、導 體:絞合鍍錫或鍍銀銅線
4、絕 緣:FEP(200℃)或PFA(250℃)鐵氟龍
5、護 套:FEP(200℃)或PFA(250℃)鐵氟龍
6、顏 色:紅/黃/蘭/白/黑/黃綠/棕/綠等
芯數×截面(mm2) |
導體結構 根數/外徑 (mm) |
絕緣 |
護套 |
||
厚度 |
外徑 |
厚度 |
外徑 |
||
2×0.12 |
7/0.15 |
0.20 |
0.85 |
0.25 |
2.20 |
3×0.12 |
7/0.15 |
0.20 |
0.85 |
0.25 |
2.30 |
4×0.12 |
7/0.15 |
0.20 |
0.85 |
0.25 |
2.60 |
5×0.12 |
7/0.15 |
0.20 |
0.85 |
0.25 |
2.80 |
6×0.12 |
7/0.15 |
0.20 |
0.85 |
0.25 |
3.10 |
7×0.12 |
7/0.15 |
0.20 |
0.85 |
0.30 |
3.15 |
10×0.12 |
7/0.15 |
0.20 |
0.85 |
0.30 |
4.00 |
12×0.12 |
7/0.15 |
0.20 |
0.85 |
0.30 |
4.20 |
19×0.12 |
7/0.15 |
0.20 |
0.85 |
0.35 |
5.00 |
2×0.2 |
7/0.20 |
0.20 |
1.00 |
0.25 |
2.50 |
3×0.2 |
7/0.20 |
0.20 |
1.00 |
0.25 |
2.60 |
4×0.2 |
7/0.20 |
0.20 |
1.00 |
0.25 |
2.90 |
5×0.2 |
7/0.20 |
0.20 |
1.00 |
0.25 |
3.20 |
6×0.2 |
7/0.20 |
0.20 |
1.00 |
0.30 |
3.60 |
7×0.2 |
7/0.20 |
0.20 |
1.00 |
0.30 |
3.60 |
10×0.2 |
7/0.20 |
0.20 |
1.00 |
0.30 |
4.60 |
12×0.2 |
7/0.20 |
0.20 |
1.00 |
0.30 |
4.70 |
19×0.2 |
7/0.20 |
0.20 |
1.00 |
0.40 |
5.80 |
2×0.35 |
19/0.16 |
0.25 |
1.30 |
0.25 |
3.10 |
3×0.35 |
19/0.16 |
0.25 |
1.30 |
0.25 |
3.20 |
4×0.35 |
19/0.16 |
0.25 |
1.30 |
0.25 |
3.65 |
5×0.35 |
19/0.16 |
0.25 |
1.30 |
0.30 |
4.10 |
6×0.35 |
19/0.16 |
0.25 |
1.30 |
0.30 |
4.50 |
7×0.35 |
19/0.16 |
0.25 |
1.30 |
0.30 |
4.50 |
8×0.35 |
19/0.16 |
0.25 |
1.30 |
0.30 |
4.90 |
10×0.35 |
19/0.16 |
0.25 |
1.30 |
0.40 |
6.00 |
12×0.35 |
19/0.16 |
0.25 |
1.30 |
0.40 |
6.20 |
19×0.35 |
19/0.16 |
0.25 |
1.30 |
0.40 |
7.30 |
